TRELLIS2 Official Subs Component Probe

继续严格沿官方 TRELLIS.2 latent / subs 路线，但把单节点匹配升级为 coarse occupancy component 匹配。核心结论是：官方 subs 经过连通组件聚合后，GT mean IoU 从 8.1e-05 提升到 0.1553，说明它们更像“part-support field”而不是可直接监督的语义 part 节点。

TRELLIS2officiallatentsubscomponentsbbox-tree

2026-04-18 11:40:57 UTCTimestamp

1Assets

activeStatus

TRELLIS2 Official Subs Component Probe cover image

Assets

Interactive Asset

Dishwasher__11622_front_left_sparse50k

这一步不再强迫 GT part 对齐单个 octree cell，而是在固定 level 上把相邻 occupied cells 聚成 connected components，再从 component 反推 bbox 与粗结构树。结果还不够论文级，但方向已经明显更合理：level-2 上自动找到 2 个组件，成功对齐 2 个 GT parts，mean IoU 提升到 0.1553。

下载 Component Boxes GLB 下载 Component Summary 下载 Component Search 下载 Best Components 下载 Generated Component Tree 下载 Component Adapter Smoke

2best-level components

2matched GT parts

0.1553mean IoU

Dishwasher__11622_front_left_sparse50k Input image — Input image

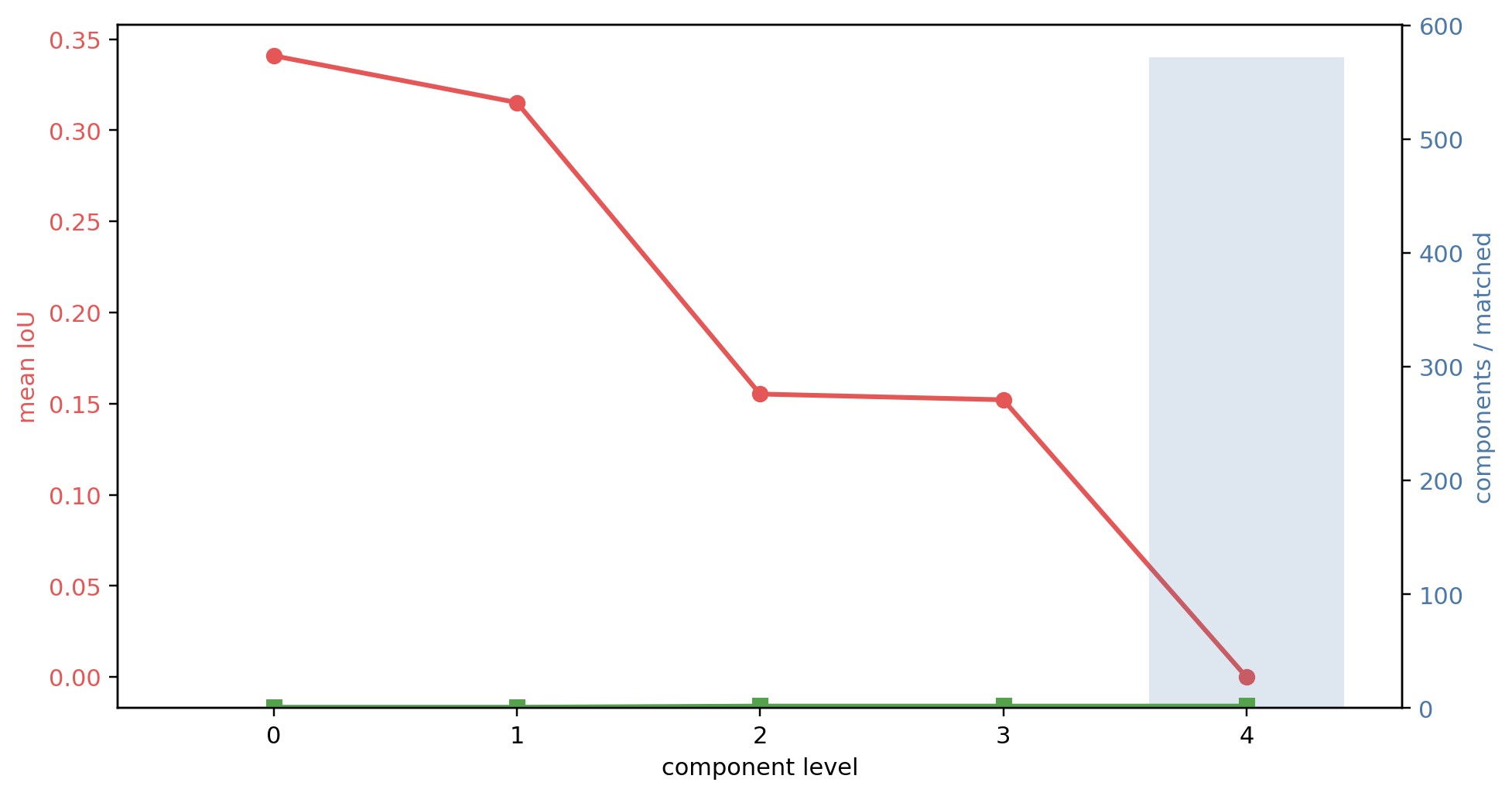

Dishwasher__11622_front_left_sparse50k Component level search — Component level search

Dishwasher__11622_front_left_sparse50k GT boxes vs matched component boxes — GT boxes vs matched component boxes

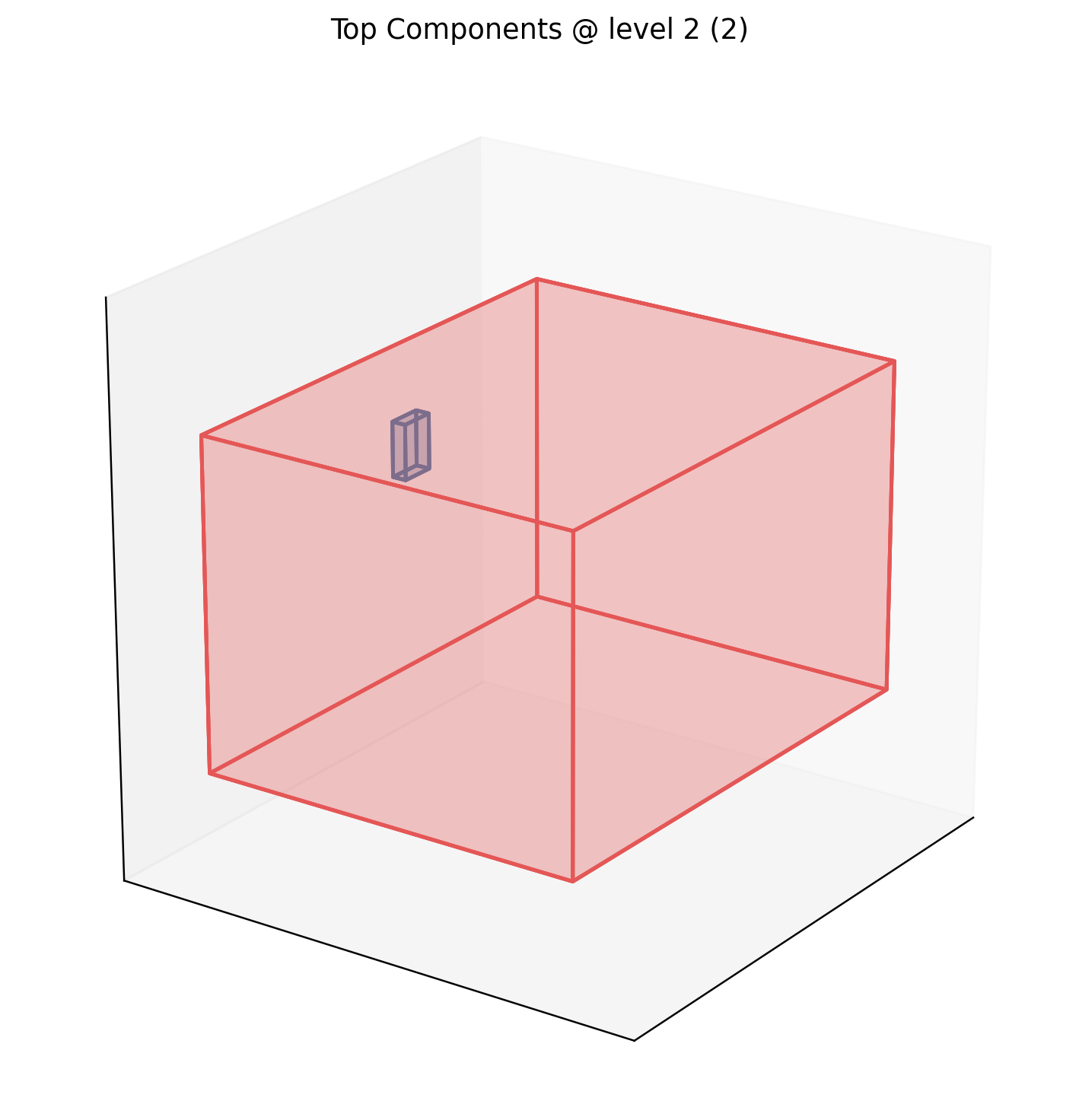

Dishwasher__11622_front_left_sparse50k Top connected components — Top connected components

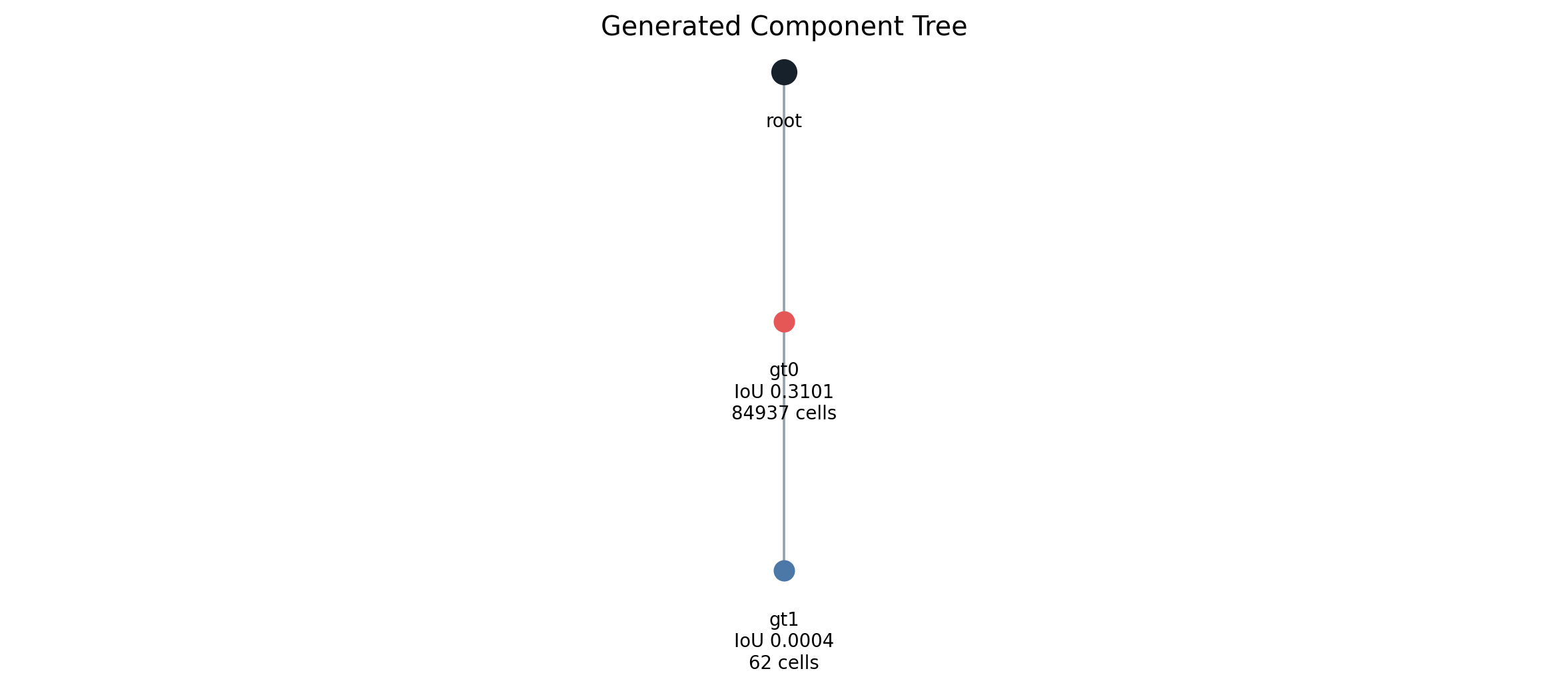

Dishwasher__11622_front_left_sparse50k Generated component tree — Generated component tree

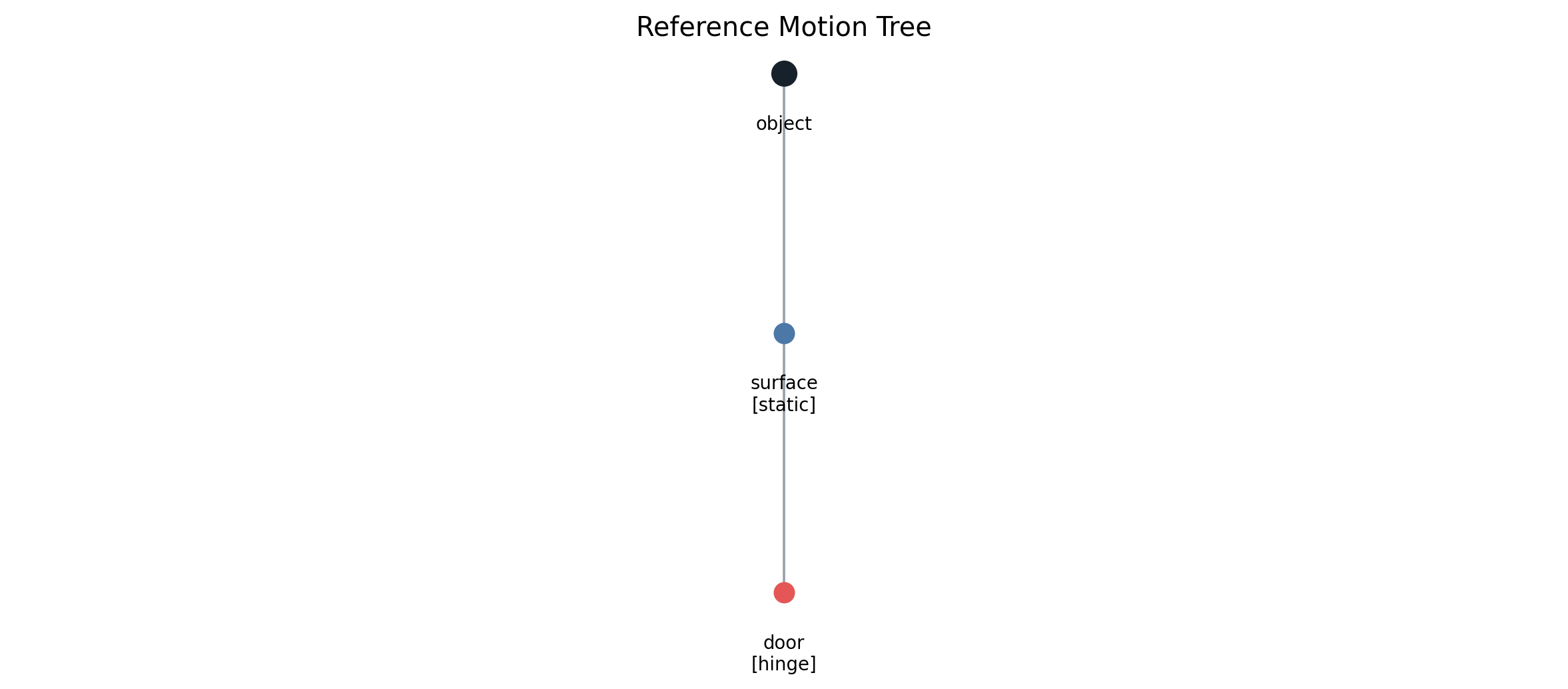

Dishwasher__11622_front_left_sparse50k Reference motion tree — Reference motion tree

Matched Component Boxes

这里展示的是官方 subs 经 coarse occupancy 组件化之后得到的 component boxes。它们比单节点 proxy 更接近可监督的语义 part 支撑区域。
