SceneTransporter Structure Probe on PartNeXt

严格按 SceneTransporter 的核心思想做了一个最小 probe：不直接碰 3D 生成器，而是只比较 patch-to-part assignment。本次在 6 个 PartNeXt rendered inputs 上对比了 `SAM`、`DINO patch KMeans`、`cosine routing`、`OT-noedge` 和 `SceneTransporter 风格 OT+edge`。结果并不自动站在 OT 这一边：均值上 `KMeans/cosine = 0.760`，`OT+edge = 0.708`，`OT-noedge = 0.702`，`SAM = 0.619`。这说明论文里的 assignment 约束思想很强，但在我们当前“无 compositional latent、只有图像 patch 特征”的简化设定里，还不能直接复制出它的优势。

SceneTransporterPartNeXtstructure-probeOTmask-assignment

2026-04-19 22:30:00 UTCTimestamp

6Assets

activeStatus

SceneTransporter Structure Probe on PartNeXt cover image

Assets

Interactive Asset

Knife_00602ef508784e5384665aacaaf1f3a0

GT 顶层 part 数为 2，名称是 `Blade / Handle`。最好的结构分离方法是 `kmeans`，matched IoU = 1.000。为了避免原始 patch mask 看起来像大方块，页面里额外放了 `boundary overlay` 和 `watershed-refined overlay`。完整对比分数：kmeans=1.000 / cosine=1.000 / ot_noedge=1.000 / ot_edge=0.945 / sam=0.498。

下载 comparison_grid.png 下载 sample_summary.json 下载 context assembled_object.glb

2GT parts

kmeansbest method

1.000best matched IoU

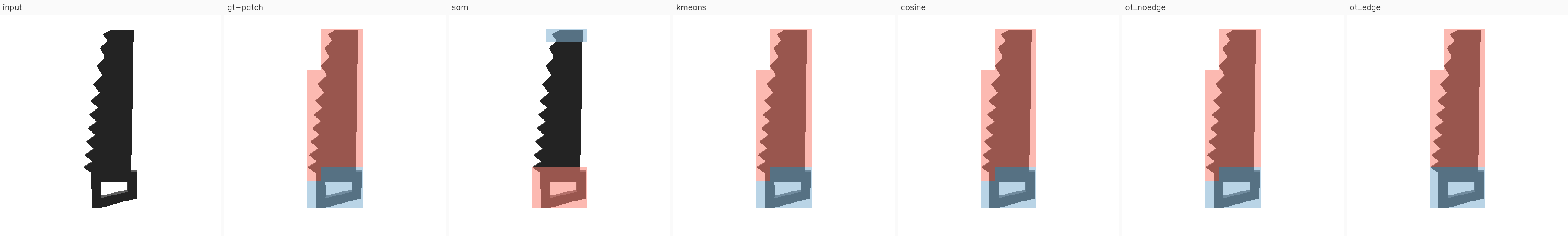

Knife_00602ef508784e5384665aacaaf1f3a0 GT / SAM / KMeans / cosine / OT-noedge / OT-edge — GT / SAM / KMeans / cosine / OT-noedge / OT-edge

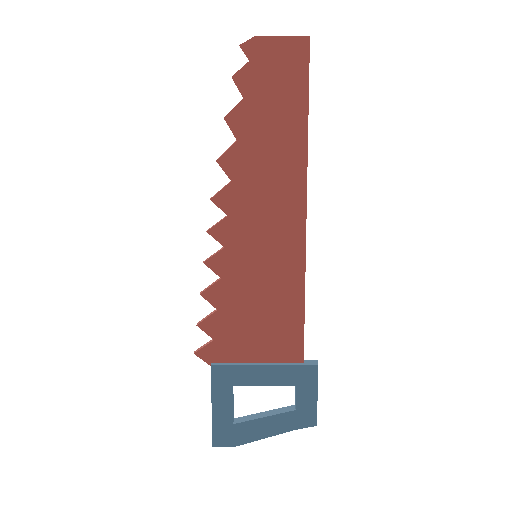

Knife_00602ef508784e5384665aacaaf1f3a0 GT mask overlay — GT mask overlay

Knife_00602ef508784e5384665aacaaf1f3a0 sam overlay (blocky patch view, IoU=0.498) — sam overlay (blocky patch view, IoU=0.498)

Knife_00602ef508784e5384665aacaaf1f3a0 sam boundary-only overlay — sam boundary-only overlay

Knife_00602ef508784e5384665aacaaf1f3a0 sam watershed-refined overlay — sam watershed-refined overlay

Knife_00602ef508784e5384665aacaaf1f3a0 kmeans overlay (blocky patch view, IoU=1.000) — kmeans overlay (blocky patch view, IoU=1.000)

Knife_00602ef508784e5384665aacaaf1f3a0 kmeans boundary-only overlay — kmeans boundary-only overlay

Knife_00602ef508784e5384665aacaaf1f3a0 kmeans watershed-refined overlay — kmeans watershed-refined overlay

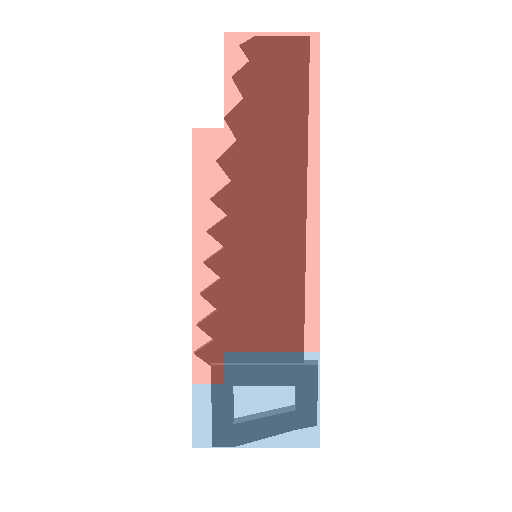

Knife_00602ef508784e5384665aacaaf1f3a0 cosine overlay (blocky patch view, IoU=1.000) — cosine overlay (blocky patch view, IoU=1.000)

Knife_00602ef508784e5384665aacaaf1f3a0 cosine boundary-only overlay — cosine boundary-only overlay

Knife_00602ef508784e5384665aacaaf1f3a0 cosine watershed-refined overlay — cosine watershed-refined overlay

Knife_00602ef508784e5384665aacaaf1f3a0 ot_noedge overlay (blocky patch view, IoU=1.000) — ot_noedge overlay (blocky patch view, IoU=1.000)

Knife_00602ef508784e5384665aacaaf1f3a0 ot_noedge boundary-only overlay — ot_noedge boundary-only overlay

Knife_00602ef508784e5384665aacaaf1f3a0 ot_noedge watershed-refined overlay — ot_noedge watershed-refined overlay

Knife_00602ef508784e5384665aacaaf1f3a0 ot_edge overlay (blocky patch view, IoU=0.945) — ot_edge overlay (blocky patch view, IoU=0.945)

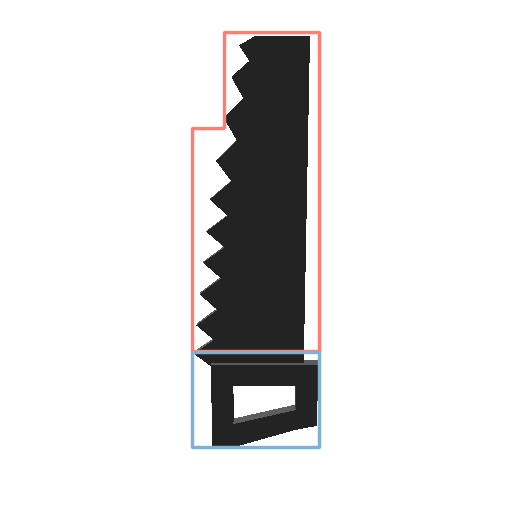

Knife_00602ef508784e5384665aacaaf1f3a0 ot_edge boundary-only overlay — ot_edge boundary-only overlay

Knife_00602ef508784e5384665aacaaf1f3a0 ot_edge watershed-refined overlay — ot_edge watershed-refined overlay

Knife_00602ef508784e5384665aacaaf1f3a0 context 3D

右侧 3D 是同一样例的上下文资产；左侧新的 boundary / refined 视图更适合看结构边界，而不是看 patch 马赛克。

Interactive Asset

Toilet_01b31c7fb7bd41ac8019ffc994b22b60

GT 顶层 part 数为 3，名称是 `Tank / Toilet Lid / Toilet Base`。最好的结构分离方法是 `sam`，matched IoU = 0.344。为了避免原始 patch mask 看起来像大方块，页面里额外放了 `boundary overlay` 和 `watershed-refined overlay`。完整对比分数：sam=0.344 / kmeans=0.325 / cosine=0.325 / ot_noedge=0.325 / ot_edge=0.299。

下载 comparison_grid.png 下载 sample_summary.json 下载 context assembled_object.glb

3GT parts

sambest method

0.344best matched IoU

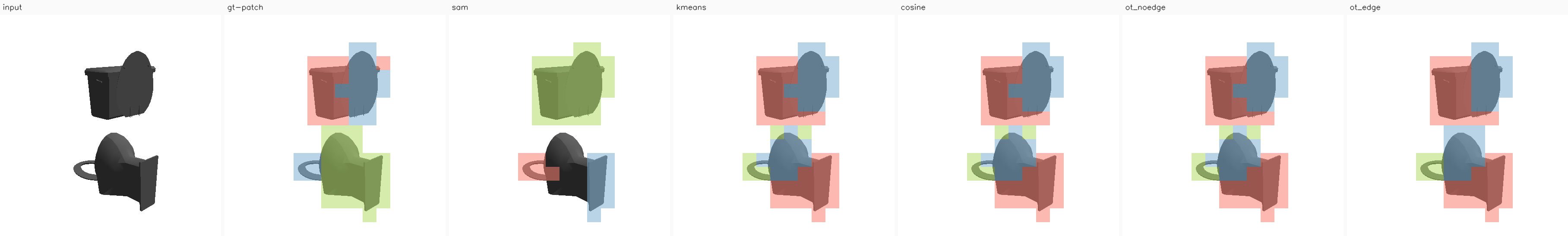

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 GT / SAM / KMeans / cosine / OT-noedge / OT-edge — GT / SAM / KMeans / cosine / OT-noedge / OT-edge

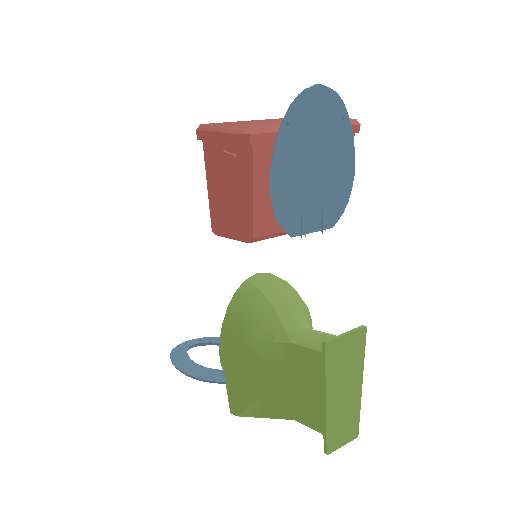

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 GT mask overlay — GT mask overlay

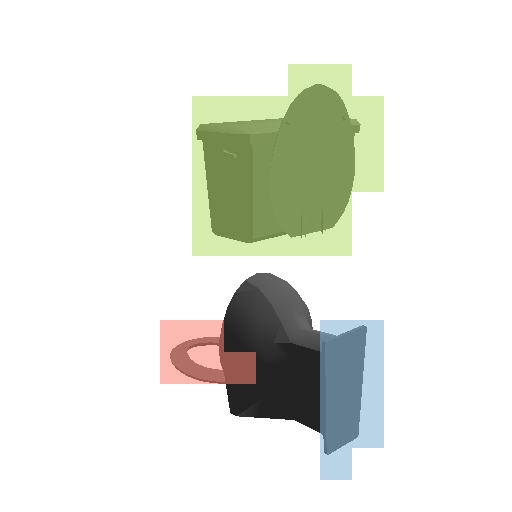

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 sam overlay (blocky patch view, IoU=0.344) — sam overlay (blocky patch view, IoU=0.344)

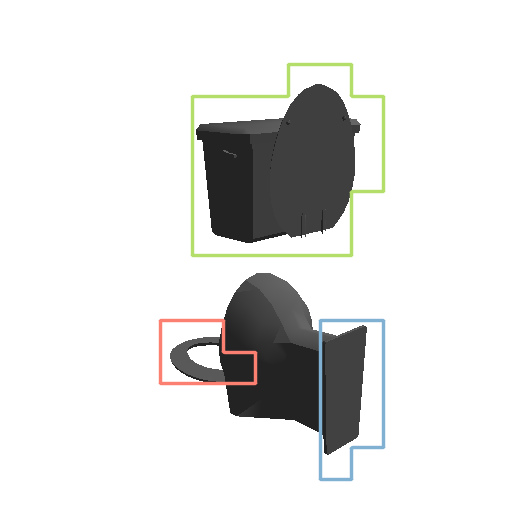

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 sam boundary-only overlay — sam boundary-only overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 sam watershed-refined overlay — sam watershed-refined overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 kmeans overlay (blocky patch view, IoU=0.325) — kmeans overlay (blocky patch view, IoU=0.325)

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 kmeans boundary-only overlay — kmeans boundary-only overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 kmeans watershed-refined overlay — kmeans watershed-refined overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 cosine overlay (blocky patch view, IoU=0.325) — cosine overlay (blocky patch view, IoU=0.325)

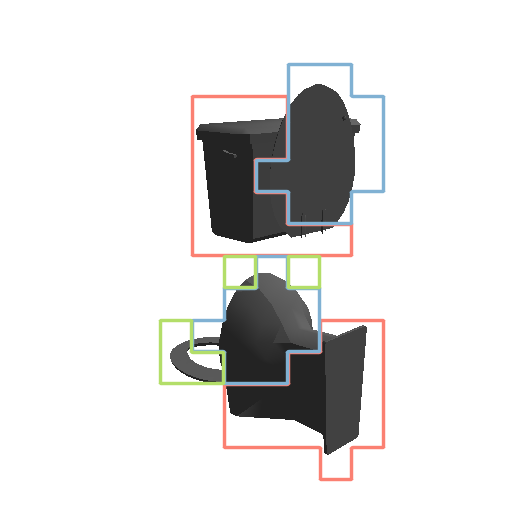

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 cosine boundary-only overlay — cosine boundary-only overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 cosine watershed-refined overlay — cosine watershed-refined overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 ot_noedge overlay (blocky patch view, IoU=0.325) — ot_noedge overlay (blocky patch view, IoU=0.325)

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 ot_noedge boundary-only overlay — ot_noedge boundary-only overlay

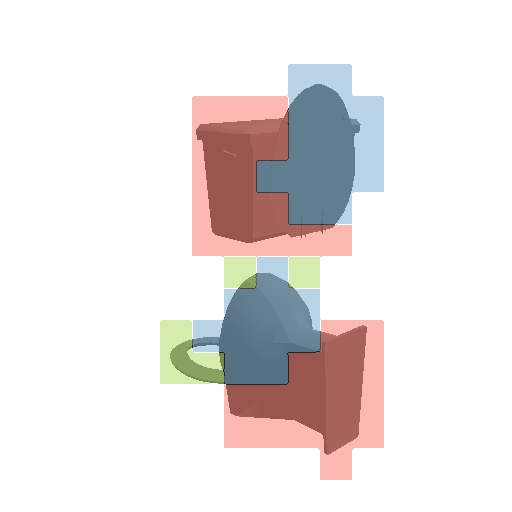

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 ot_noedge watershed-refined overlay — ot_noedge watershed-refined overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 ot_edge overlay (blocky patch view, IoU=0.299) — ot_edge overlay (blocky patch view, IoU=0.299)

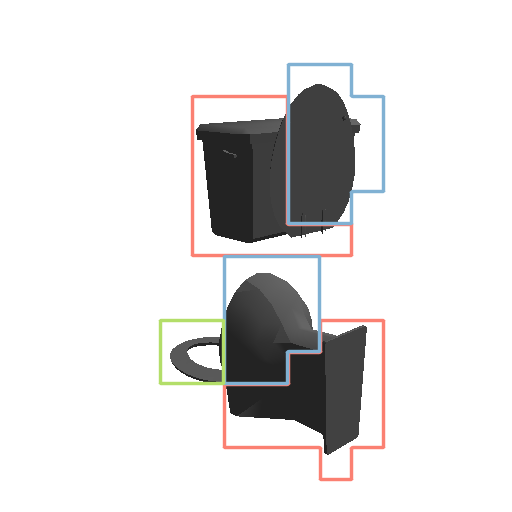

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 ot_edge boundary-only overlay — ot_edge boundary-only overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 ot_edge watershed-refined overlay — ot_edge watershed-refined overlay

Toilet_01b31c7fb7bd41ac8019ffc994b22b60 context 3D

右侧 3D 是同一样例的上下文资产；左侧新的 boundary / refined 视图更适合看结构边界，而不是看 patch 马赛克。

Interactive Asset

Monitor_01ce620e70ff40708eb4a1b04f4a828e

GT 顶层 part 数为 2，名称是 `Display / Stand`。最好的结构分离方法是 `sam`，matched IoU = 1.000。为了避免原始 patch mask 看起来像大方块，页面里额外放了 `boundary overlay` 和 `watershed-refined overlay`。完整对比分数：sam=1.000 / ot_edge=0.954 / kmeans=0.889 / cosine=0.889 / ot_noedge=0.889。

下载 comparison_grid.png 下载 sample_summary.json 下载 context assembled_object.glb

2GT parts

sambest method

1.000best matched IoU

Monitor_01ce620e70ff40708eb4a1b04f4a828e GT / SAM / KMeans / cosine / OT-noedge / OT-edge — GT / SAM / KMeans / cosine / OT-noedge / OT-edge

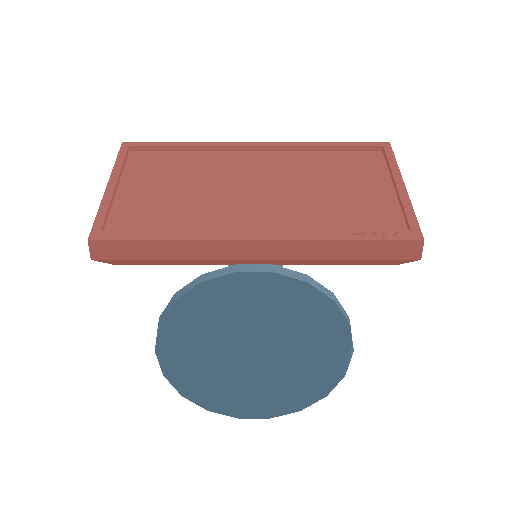

Monitor_01ce620e70ff40708eb4a1b04f4a828e GT mask overlay — GT mask overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e sam overlay (blocky patch view, IoU=1.000) — sam overlay (blocky patch view, IoU=1.000)

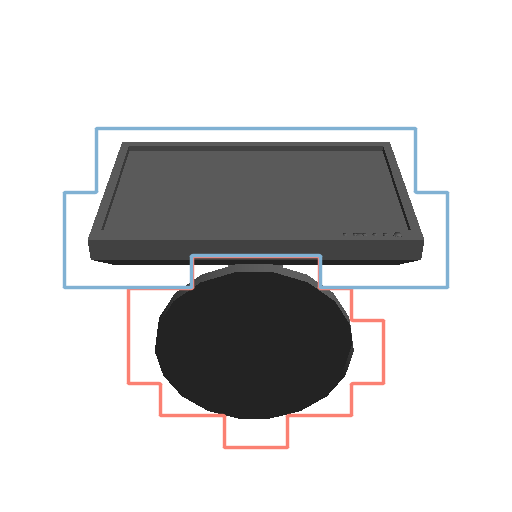

Monitor_01ce620e70ff40708eb4a1b04f4a828e sam boundary-only overlay — sam boundary-only overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e sam watershed-refined overlay — sam watershed-refined overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e kmeans overlay (blocky patch view, IoU=0.889) — kmeans overlay (blocky patch view, IoU=0.889)

Monitor_01ce620e70ff40708eb4a1b04f4a828e kmeans boundary-only overlay — kmeans boundary-only overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e kmeans watershed-refined overlay — kmeans watershed-refined overlay

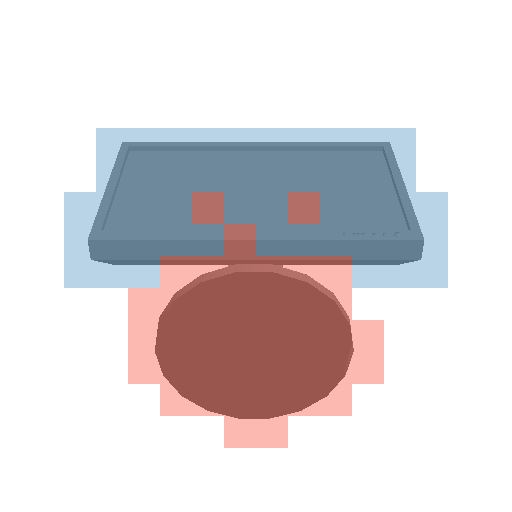

Monitor_01ce620e70ff40708eb4a1b04f4a828e cosine overlay (blocky patch view, IoU=0.889) — cosine overlay (blocky patch view, IoU=0.889)

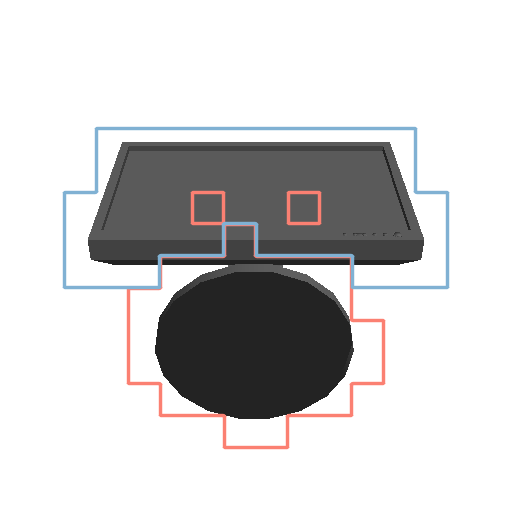

Monitor_01ce620e70ff40708eb4a1b04f4a828e cosine boundary-only overlay — cosine boundary-only overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e cosine watershed-refined overlay — cosine watershed-refined overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e ot_noedge overlay (blocky patch view, IoU=0.889) — ot_noedge overlay (blocky patch view, IoU=0.889)

Monitor_01ce620e70ff40708eb4a1b04f4a828e ot_noedge boundary-only overlay — ot_noedge boundary-only overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e ot_noedge watershed-refined overlay — ot_noedge watershed-refined overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e ot_edge overlay (blocky patch view, IoU=0.954) — ot_edge overlay (blocky patch view, IoU=0.954)

Monitor_01ce620e70ff40708eb4a1b04f4a828e ot_edge boundary-only overlay — ot_edge boundary-only overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e ot_edge watershed-refined overlay — ot_edge watershed-refined overlay

Monitor_01ce620e70ff40708eb4a1b04f4a828e context 3D

右侧 3D 是同一样例的上下文资产；左侧新的 boundary / refined 视图更适合看结构边界，而不是看 patch 马赛克。

Interactive Asset

Guitar_553a53ba86804d4da6e51946a6011b0e

GT 顶层 part 数为 2，名称是 `String Components / Guitar Main Components`。最好的结构分离方法是 `sam`，matched IoU = 1.000。为了避免原始 patch mask 看起来像大方块，页面里额外放了 `boundary overlay` 和 `watershed-refined overlay`。完整对比分数：sam=1.000 / kmeans=0.643 / cosine=0.643 / ot_noedge=0.643 / ot_edge=0.643。

下载 comparison_grid.png 下载 sample_summary.json 下载 context assembled_object.glb

2GT parts

sambest method

1.000best matched IoU

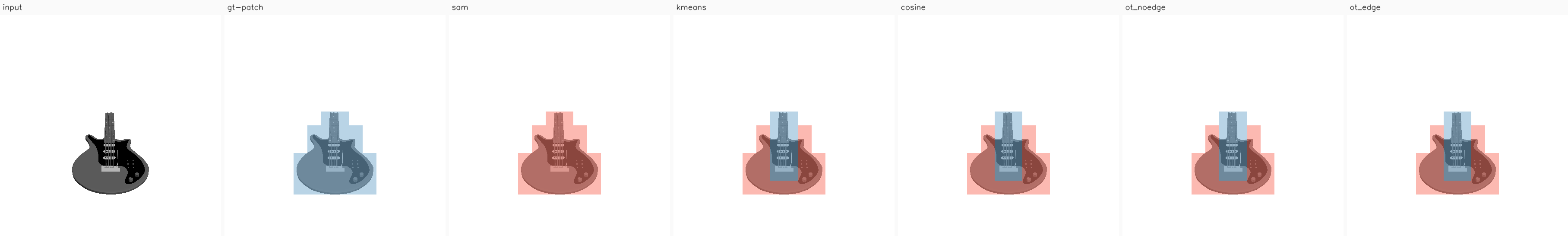

Guitar_553a53ba86804d4da6e51946a6011b0e GT / SAM / KMeans / cosine / OT-noedge / OT-edge — GT / SAM / KMeans / cosine / OT-noedge / OT-edge

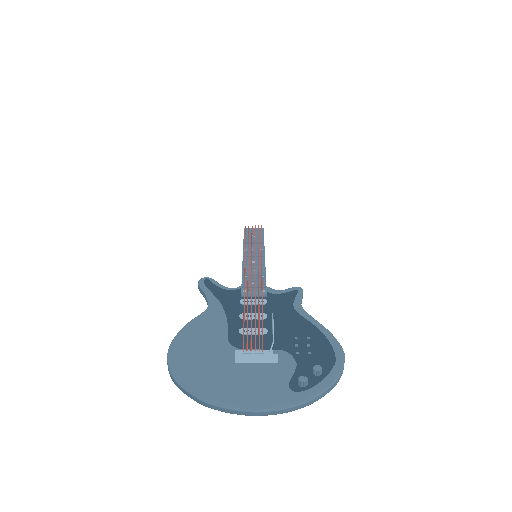

Guitar_553a53ba86804d4da6e51946a6011b0e GT mask overlay — GT mask overlay

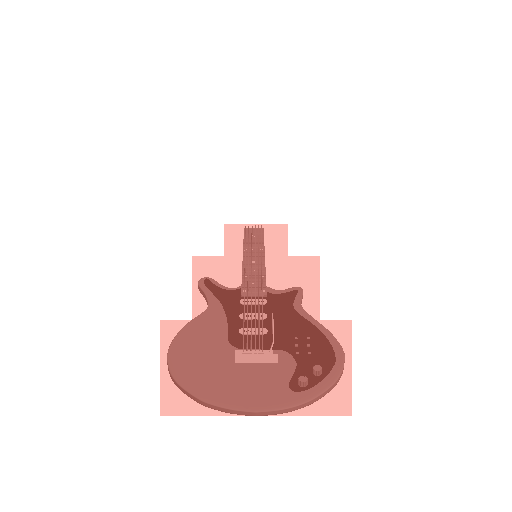

Guitar_553a53ba86804d4da6e51946a6011b0e sam overlay (blocky patch view, IoU=1.000) — sam overlay (blocky patch view, IoU=1.000)

Guitar_553a53ba86804d4da6e51946a6011b0e sam boundary-only overlay — sam boundary-only overlay

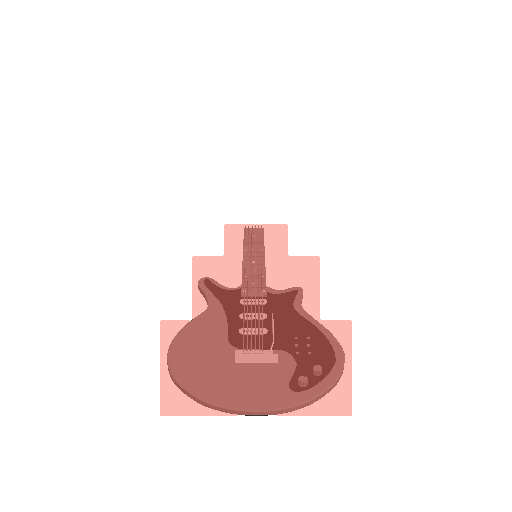

Guitar_553a53ba86804d4da6e51946a6011b0e sam watershed-refined overlay — sam watershed-refined overlay

Guitar_553a53ba86804d4da6e51946a6011b0e kmeans overlay (blocky patch view, IoU=0.643) — kmeans overlay (blocky patch view, IoU=0.643)

Guitar_553a53ba86804d4da6e51946a6011b0e kmeans boundary-only overlay — kmeans boundary-only overlay

Guitar_553a53ba86804d4da6e51946a6011b0e kmeans watershed-refined overlay — kmeans watershed-refined overlay

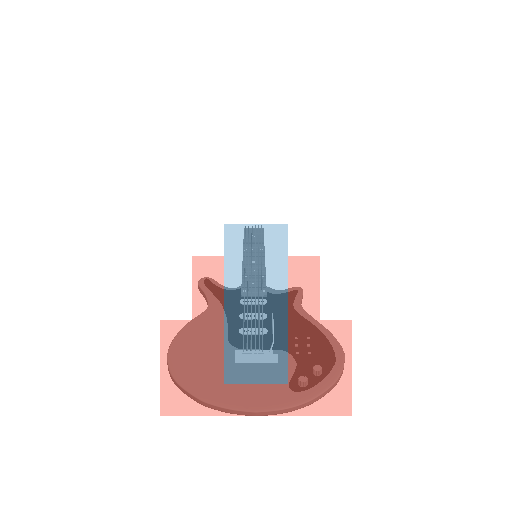

Guitar_553a53ba86804d4da6e51946a6011b0e cosine overlay (blocky patch view, IoU=0.643) — cosine overlay (blocky patch view, IoU=0.643)

Guitar_553a53ba86804d4da6e51946a6011b0e cosine boundary-only overlay — cosine boundary-only overlay

Guitar_553a53ba86804d4da6e51946a6011b0e cosine watershed-refined overlay — cosine watershed-refined overlay

Guitar_553a53ba86804d4da6e51946a6011b0e ot_noedge overlay (blocky patch view, IoU=0.643) — ot_noedge overlay (blocky patch view, IoU=0.643)

Guitar_553a53ba86804d4da6e51946a6011b0e ot_noedge boundary-only overlay — ot_noedge boundary-only overlay

Guitar_553a53ba86804d4da6e51946a6011b0e ot_noedge watershed-refined overlay — ot_noedge watershed-refined overlay

Guitar_553a53ba86804d4da6e51946a6011b0e ot_edge overlay (blocky patch view, IoU=0.643) — ot_edge overlay (blocky patch view, IoU=0.643)

Guitar_553a53ba86804d4da6e51946a6011b0e ot_edge boundary-only overlay — ot_edge boundary-only overlay

Guitar_553a53ba86804d4da6e51946a6011b0e ot_edge watershed-refined overlay — ot_edge watershed-refined overlay

Guitar_553a53ba86804d4da6e51946a6011b0e context 3D

右侧 3D 是同一样例的上下文资产；左侧新的 boundary / refined 视图更适合看结构边界，而不是看 patch 马赛克。

Interactive Asset

Teapot_7641732252ad47a5af0828d4f471338b

GT 顶层 part 数为 4，名称是 `Body / Spout / Lid / Handle`。最好的结构分离方法是 `kmeans`，matched IoU = 0.795。为了避免原始 patch mask 看起来像大方块，页面里额外放了 `boundary overlay` 和 `watershed-refined overlay`。完整对比分数：kmeans=0.795 / cosine=0.795 / ot_edge=0.586 / ot_noedge=0.538 / sam=0.369。

下载 comparison_grid.png 下载 sample_summary.json 下载 context assembled_object.glb

4GT parts

kmeansbest method

0.795best matched IoU

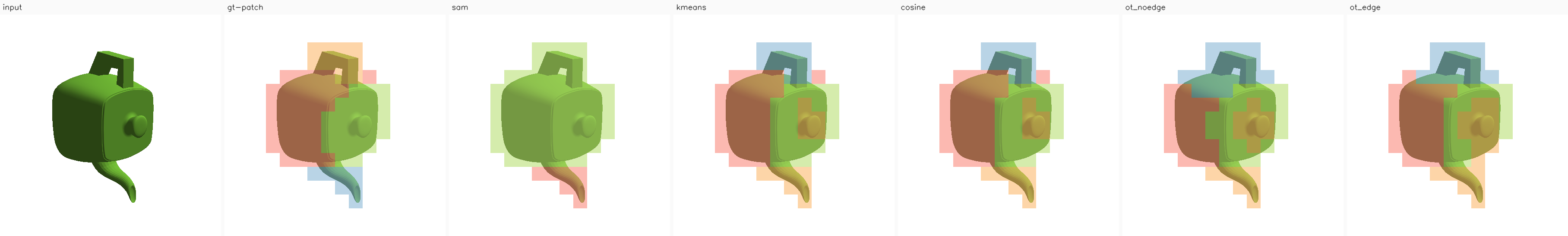

Teapot_7641732252ad47a5af0828d4f471338b GT / SAM / KMeans / cosine / OT-noedge / OT-edge — GT / SAM / KMeans / cosine / OT-noedge / OT-edge

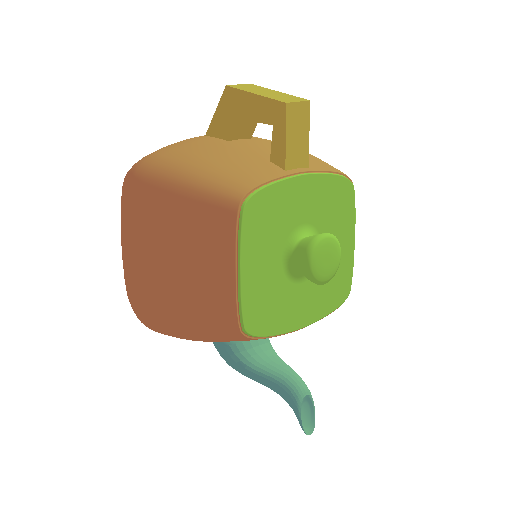

Teapot_7641732252ad47a5af0828d4f471338b GT mask overlay — GT mask overlay

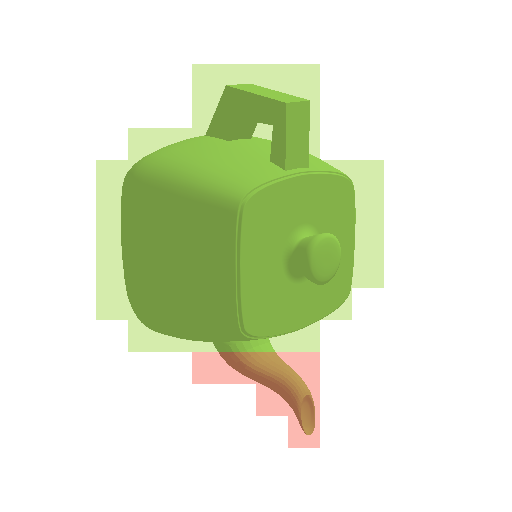

Teapot_7641732252ad47a5af0828d4f471338b sam overlay (blocky patch view, IoU=0.369) — sam overlay (blocky patch view, IoU=0.369)

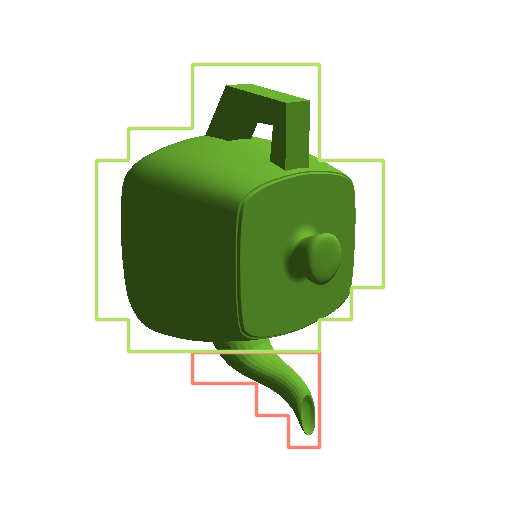

Teapot_7641732252ad47a5af0828d4f471338b sam boundary-only overlay — sam boundary-only overlay

Teapot_7641732252ad47a5af0828d4f471338b sam watershed-refined overlay — sam watershed-refined overlay

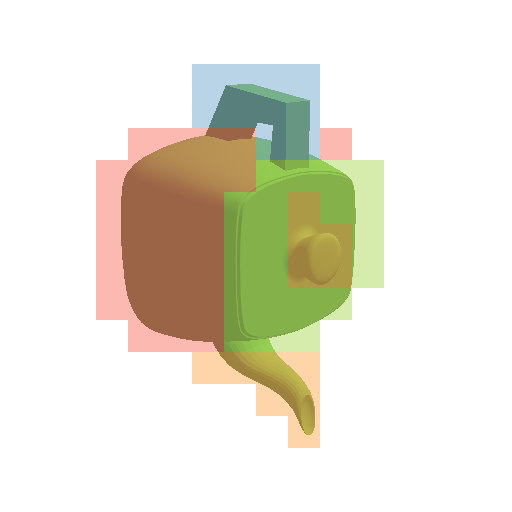

Teapot_7641732252ad47a5af0828d4f471338b kmeans overlay (blocky patch view, IoU=0.795) — kmeans overlay (blocky patch view, IoU=0.795)

Teapot_7641732252ad47a5af0828d4f471338b kmeans boundary-only overlay — kmeans boundary-only overlay

Teapot_7641732252ad47a5af0828d4f471338b kmeans watershed-refined overlay — kmeans watershed-refined overlay

Teapot_7641732252ad47a5af0828d4f471338b cosine overlay (blocky patch view, IoU=0.795) — cosine overlay (blocky patch view, IoU=0.795)

Teapot_7641732252ad47a5af0828d4f471338b cosine boundary-only overlay — cosine boundary-only overlay

Teapot_7641732252ad47a5af0828d4f471338b cosine watershed-refined overlay — cosine watershed-refined overlay

Teapot_7641732252ad47a5af0828d4f471338b ot_noedge overlay (blocky patch view, IoU=0.538) — ot_noedge overlay (blocky patch view, IoU=0.538)

Teapot_7641732252ad47a5af0828d4f471338b ot_noedge boundary-only overlay — ot_noedge boundary-only overlay

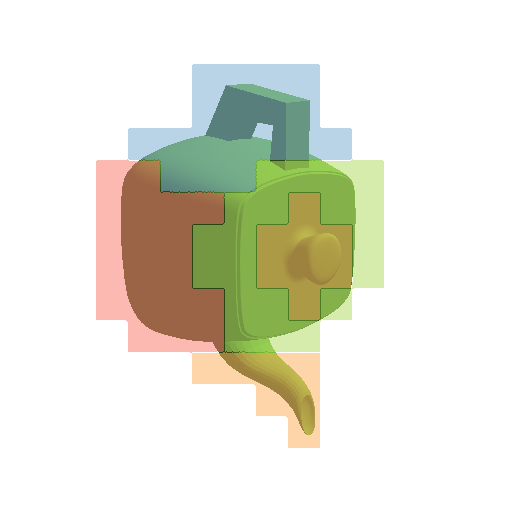

Teapot_7641732252ad47a5af0828d4f471338b ot_noedge watershed-refined overlay — ot_noedge watershed-refined overlay

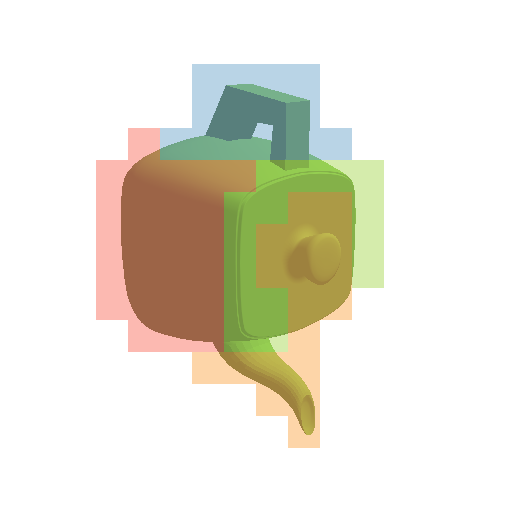

Teapot_7641732252ad47a5af0828d4f471338b ot_edge overlay (blocky patch view, IoU=0.586) — ot_edge overlay (blocky patch view, IoU=0.586)

Teapot_7641732252ad47a5af0828d4f471338b ot_edge boundary-only overlay — ot_edge boundary-only overlay

Teapot_7641732252ad47a5af0828d4f471338b ot_edge watershed-refined overlay — ot_edge watershed-refined overlay

Teapot_7641732252ad47a5af0828d4f471338b context 3D

右侧 3D 是同一样例的上下文资产；左侧新的 boundary / refined 视图更适合看结构边界，而不是看 patch 马赛克。

Interactive Asset

Laptop_Computer_a14d471ffda04d38a1910b9ef87e8dff

GT 顶层 part 数为 3，名称是 `Screen Side / Bottom Side / Hinge`。最好的结构分离方法是 `kmeans`，matched IoU = 0.909。为了避免原始 patch mask 看起来像大方块，页面里额外放了 `boundary overlay` 和 `watershed-refined overlay`。完整对比分数：kmeans=0.909 / cosine=0.909 / ot_noedge=0.818 / ot_edge=0.818 / sam=0.500。

下载 comparison_grid.png 下载 sample_summary.json 下载 context assembled_object.glb

3GT parts

kmeansbest method

0.909best matched IoU
