ArtVIP Geometry / Structure / Motion / Texture Showcase

从 ArtVIP 里挑出 dishwasher、refrigerator、laptop 和 anesthesia machine 四个代表样本，直接从 USD 抽出几何统计、semantic structure tree、kinematic tree、world-space bbox 与纹理拼图，帮助判断这套数据更适合拿来做什么。

ArtVIPUSDarticulated-assetsstructure-auditsim-ready

2026-04-21 12:30:00 UTCTimestamp

4Assets

activeStatus

ArtVIP Geometry / Structure / Motion / Texture Showcase cover image

Assets

Interactive Asset

Dishwasher 2

直接从 USD 抽出的样本卡：几何 13 meshes / 4 joints / 5 semantic parts。左侧 gallery 展示结构树、运动树、3D bbox 与纹理拼图。

下载 summary.json 下载 semantic tree 下载 kinematic tree 下载 3D bbox view 下载 texture collage 下载 overall bbox glb 下载 USD

13meshes

4joints

5semantic parts

Dishwasher 2 asset thumbnail — asset thumbnail

Dishwasher 2 semantic structure tree — semantic structure tree

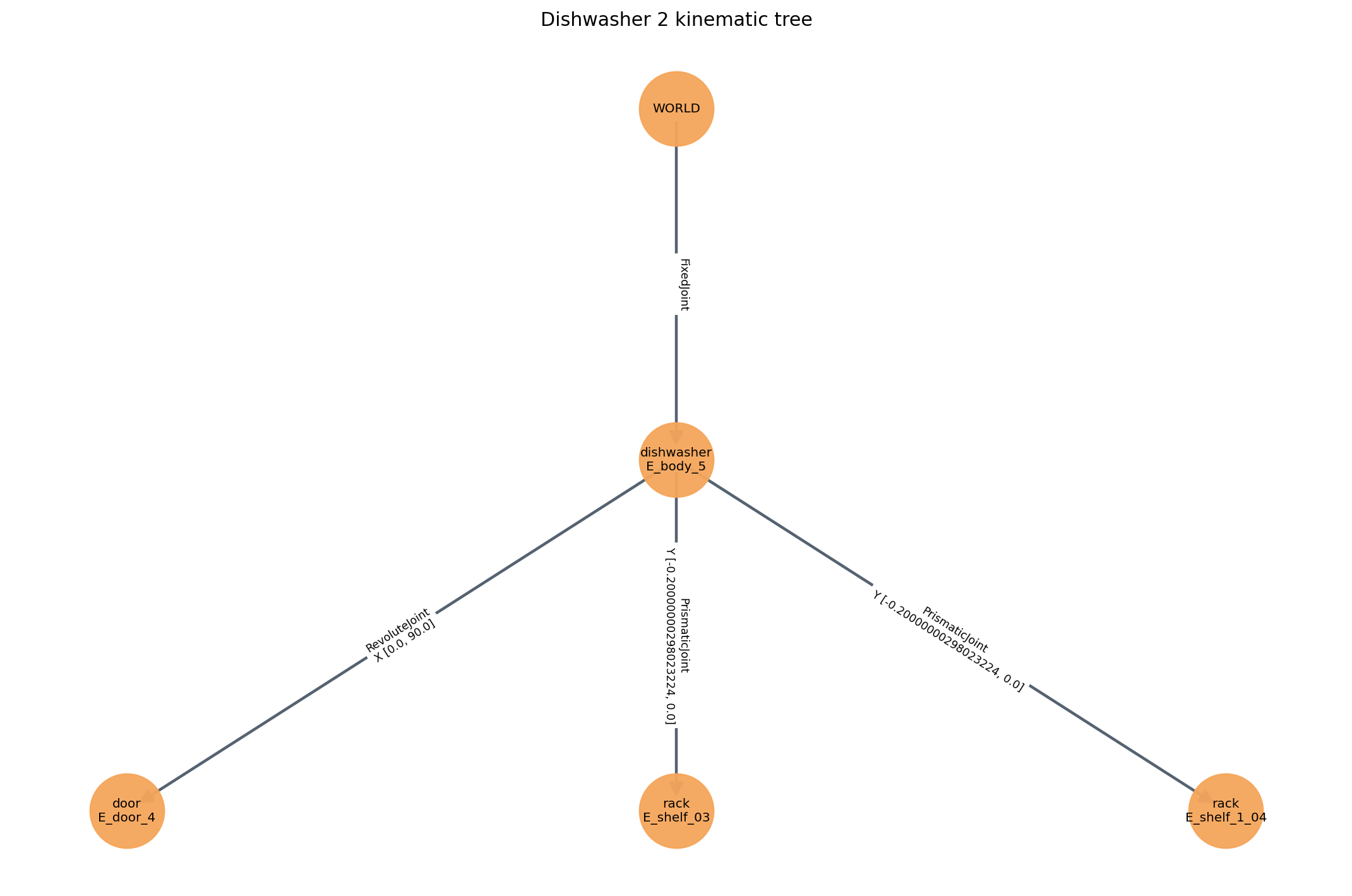

Dishwasher 2 kinematic tree — kinematic tree

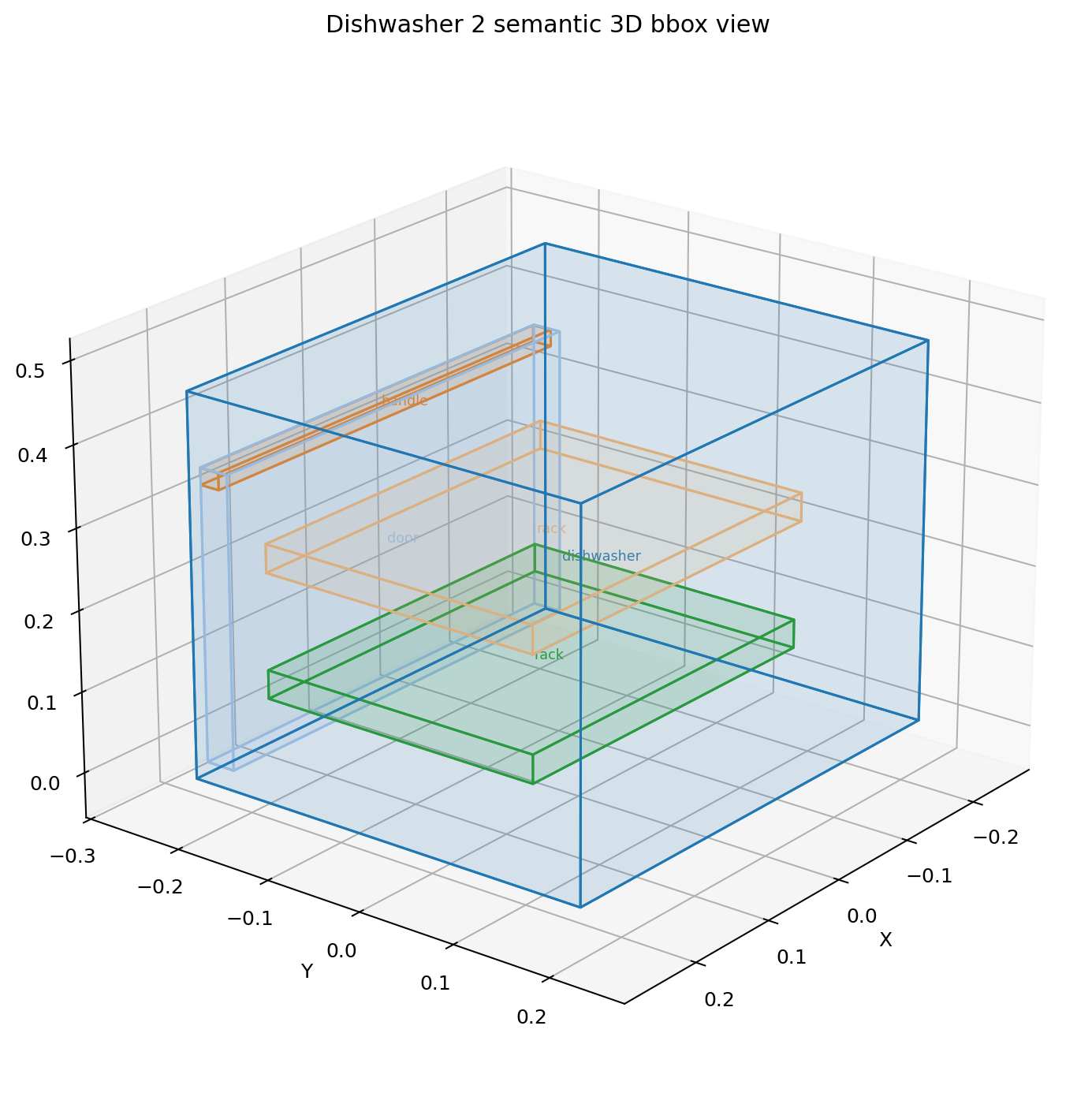

Dishwasher 2 semantic 3D bbox view — semantic 3D bbox view

Dishwasher 2 sample texture files — sample texture files

Dishwasher 2 · ArtVIP extracted summary

viewer 现在显示整个资产 bbox 的 3D 占位盒，重点仍然在左侧 gallery 的结构/运动/纹理信息。

Interactive Asset

Fridge 3

直接从 USD 抽出的样本卡：几何 51 meshes / 7 joints / 19 semantic parts。左侧 gallery 展示结构树、运动树、3D bbox 与纹理拼图。

下载 summary.json 下载 semantic tree 下载 kinematic tree 下载 3D bbox view 下载 texture collage 下载 overall bbox glb 下载 USD

51meshes

7joints

19semantic parts

Fridge 3 asset thumbnail — asset thumbnail

Fridge 3 semantic structure tree — semantic structure tree

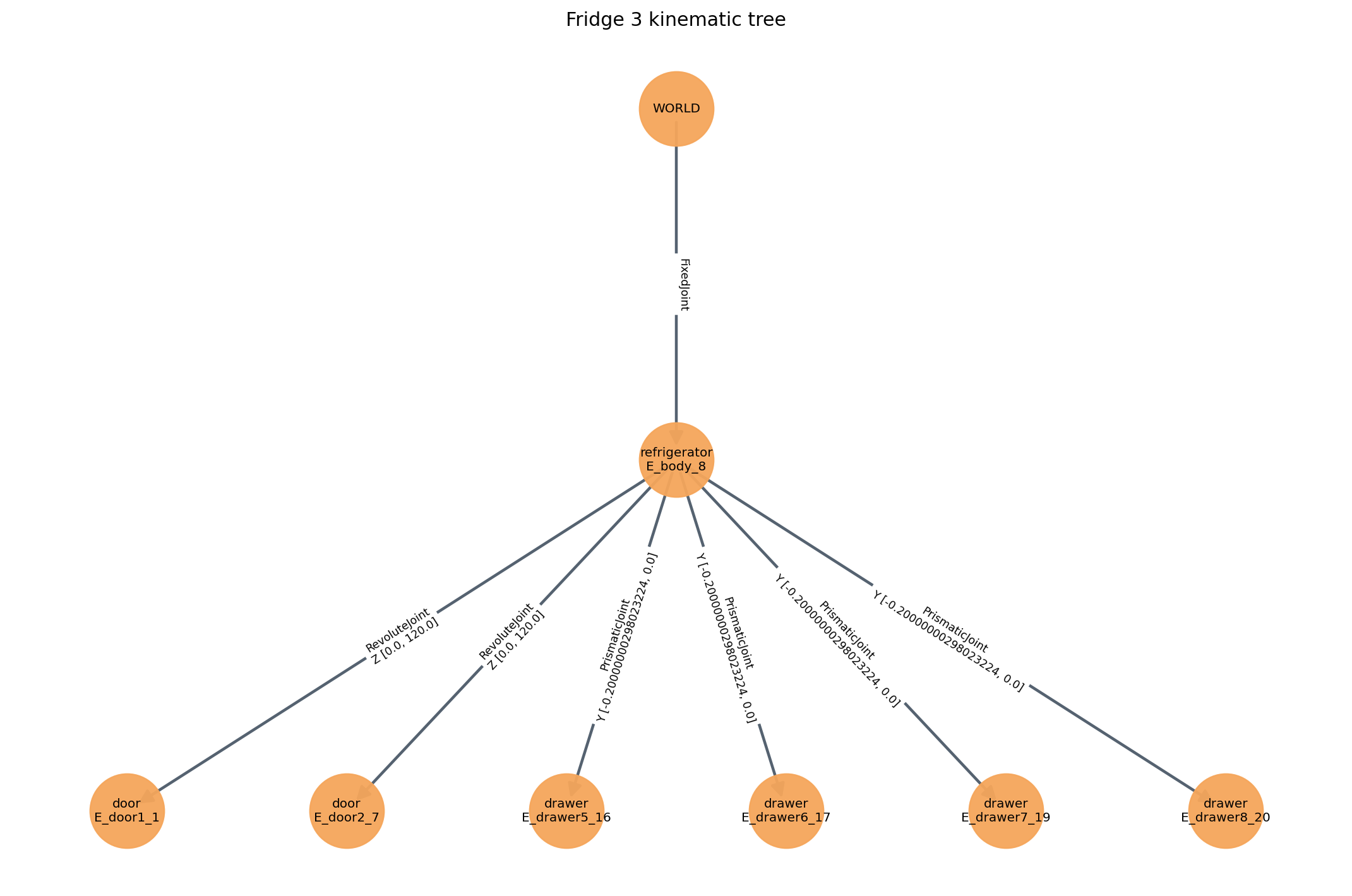

Fridge 3 kinematic tree — kinematic tree

Fridge 3 semantic 3D bbox view — semantic 3D bbox view

Fridge 3 sample texture files — sample texture files

Fridge 3 · ArtVIP extracted summary

viewer 现在显示整个资产 bbox 的 3D 占位盒，重点仍然在左侧 gallery 的结构/运动/纹理信息。

Interactive Asset

Laptop Computer 5

直接从 USD 抽出的样本卡：几何 19 meshes / 2 joints / 5 semantic parts。左侧 gallery 展示结构树、运动树、3D bbox 与纹理拼图。

下载 summary.json 下载 semantic tree 下载 kinematic tree 下载 3D bbox view 下载 texture collage 下载 overall bbox glb 下载 USD

19meshes

2joints

5semantic parts

Laptop Computer 5 asset thumbnail — asset thumbnail

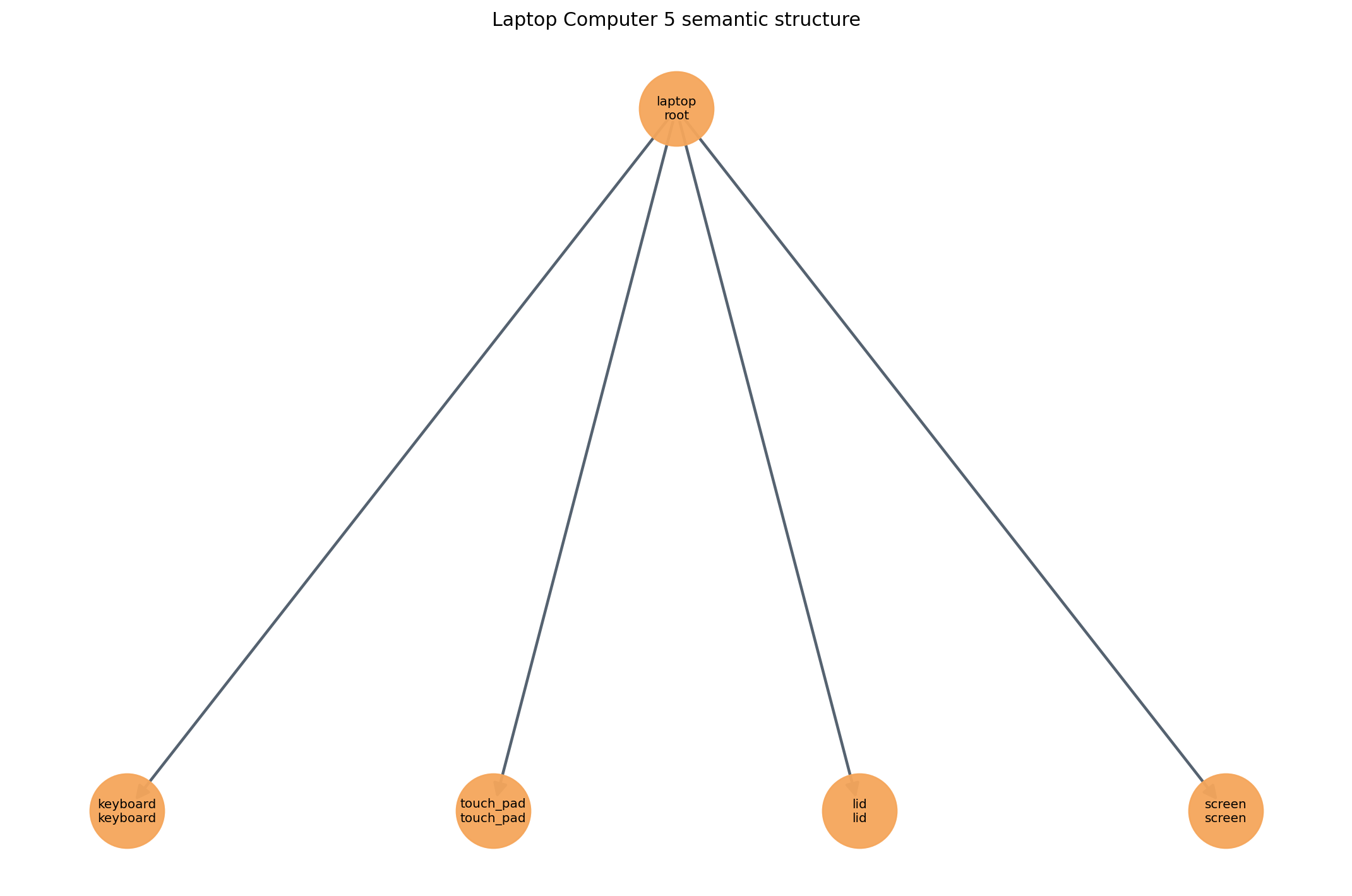

Laptop Computer 5 semantic structure tree — semantic structure tree

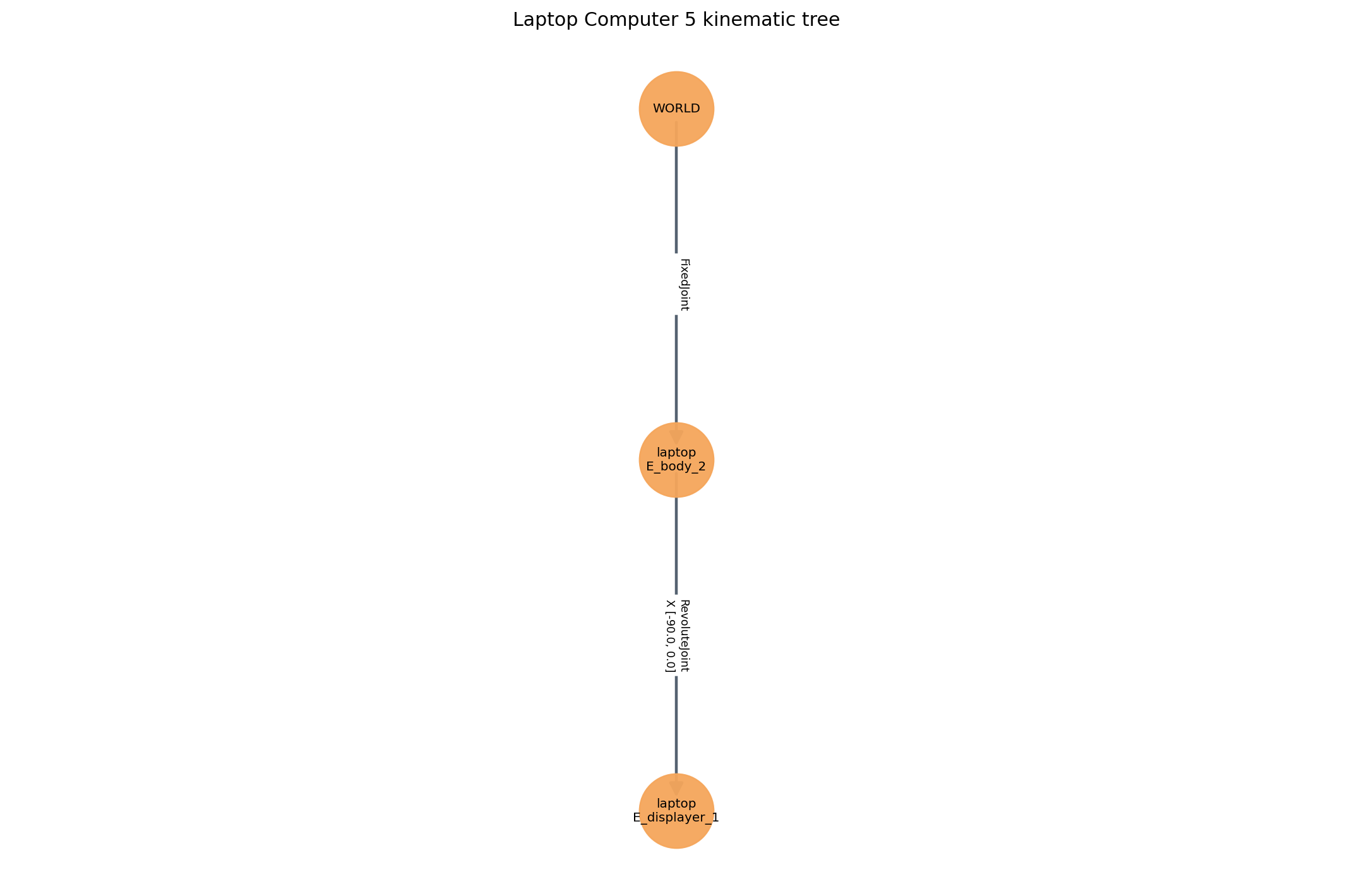

Laptop Computer 5 kinematic tree — kinematic tree

Laptop Computer 5 semantic 3D bbox view — semantic 3D bbox view

Laptop Computer 5 sample texture files — sample texture files

Laptop Computer 5 · ArtVIP extracted summary

viewer 现在显示整个资产 bbox 的 3D 占位盒，重点仍然在左侧 gallery 的结构/运动/纹理信息。

Interactive Asset

Anesthesia Machine

直接从 USD 抽出的样本卡：几何 65 meshes / 16 joints / 51 semantic parts。左侧 gallery 展示结构树、运动树、3D bbox 与纹理拼图。

下载 summary.json 下载 semantic tree 下载 kinematic tree 下载 3D bbox view 下载 texture collage 下载 overall bbox glb 下载 USD

65meshes

16joints

51semantic parts

Anesthesia Machine semantic structure tree — semantic structure tree

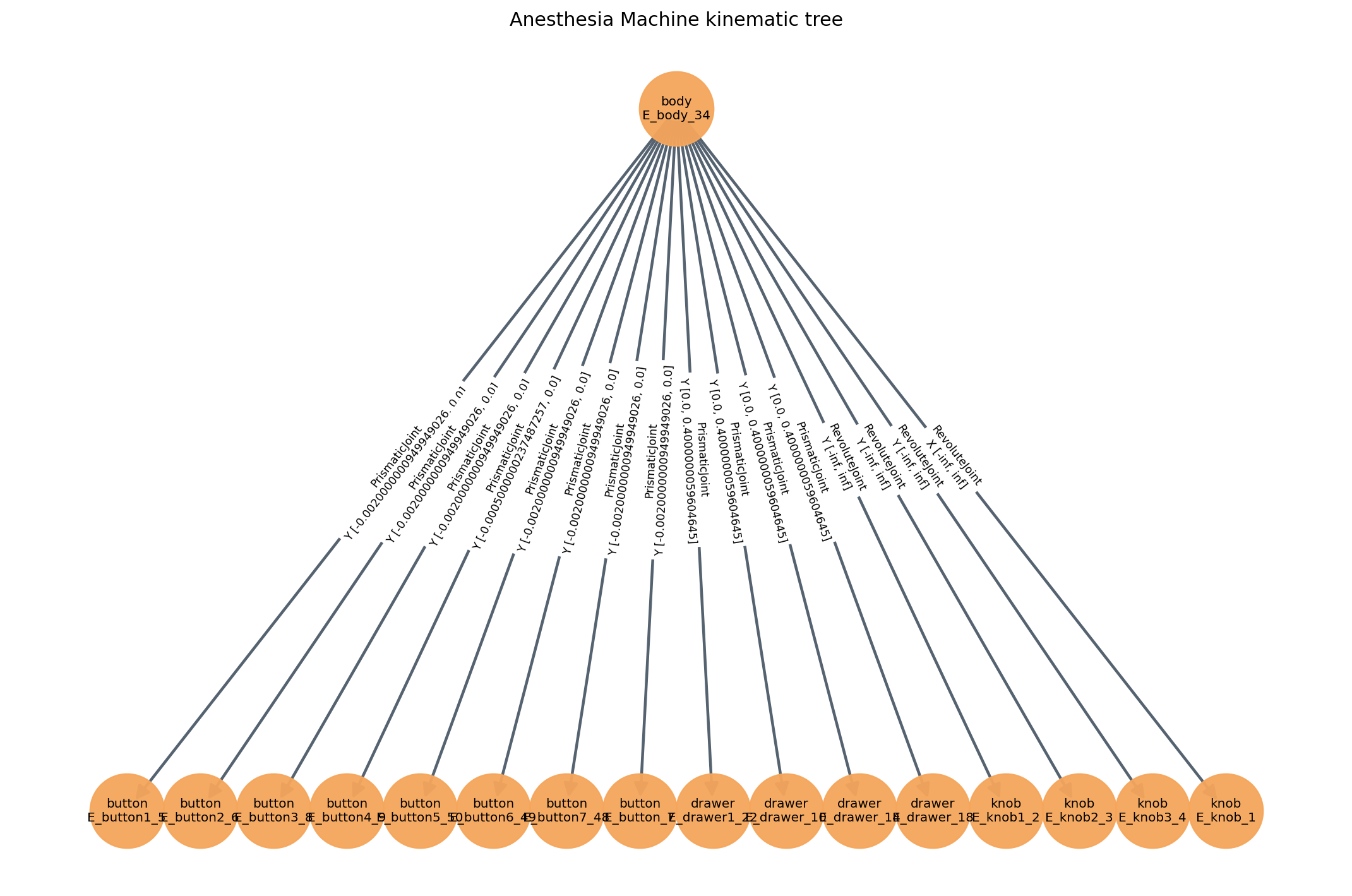

Anesthesia Machine kinematic tree — kinematic tree

Anesthesia Machine semantic 3D bbox view — semantic 3D bbox view

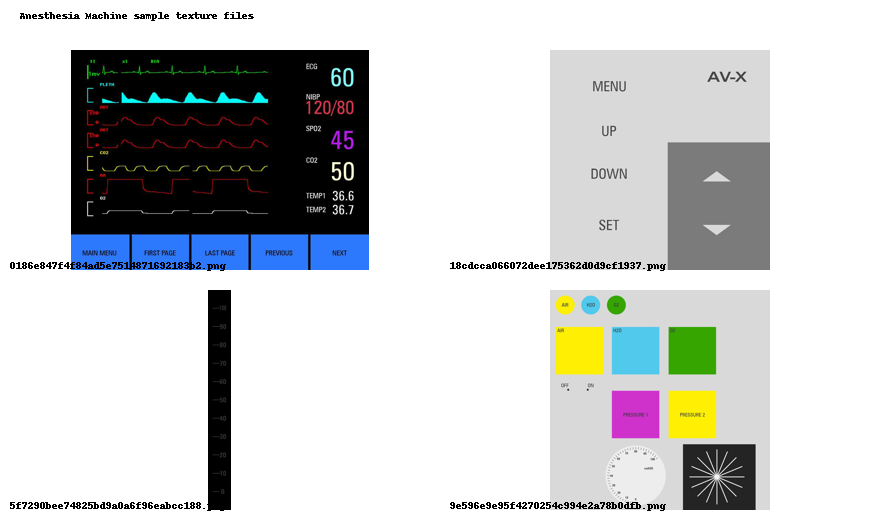

Anesthesia Machine sample texture files — sample texture files

Anesthesia Machine · ArtVIP extracted summary

viewer 现在显示整个资产 bbox 的 3D 占位盒，重点仍然在左侧 gallery 的结构/运动/纹理信息。
